ASRock B760M Pro-A DDR5

Name: ASRock B760M Pro-A DDR5
Brand: Asrock
SKU: PCG-3100-ES8L
Price: 16900 BDT
Availability: InStock

Brand: Asrock

(0)

Tk 16,900

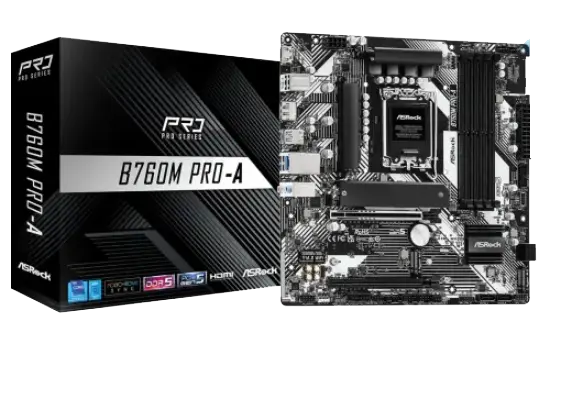

The ASRock B760M Pro-A DDR5 Micro ATX motherboard is a powerful and versatile platform designed to support the latest Intel Core processors, including the 14th, 13th, and 12th generations with the LGA1700 socket. It features a robust 7+1+1 power phase design, utilizing Dr.MOS for efficient VCore and GT performance

Availability:In stock

SKU:PCG-3100-ES8L

Categories: ASRock (Intel)

Fast Shipping

For all orders

1 & 1 Returns

Cancellation after 1 day

Secure Payment

Guarantee secure payments

Hotline Order:

Sat - Thu : 10AM - 08PM

+8801704444109

Description Reviews (0)

Expansion Slots
Supported CPU	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory
Type	DDR5
Slots	4
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory	256GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	- 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
