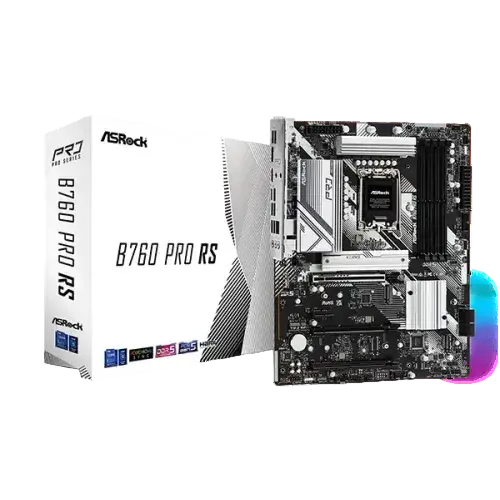

ASRock B760 Pro RS ATX Motherboard

Name: ASRock B760 Pro RS ATX Motherboard
Brand: Asrock
SKU: PCG-3100-CCDB
Price: 22000 BDT
Availability: InStock

Brand: Asrock

(0)

Tk 22,000

The ASRock B760 Pro RS is a ATX motherboard designed to support 14th, 13th Gen, and 12th Gen Intel Core processors with LGA1700 socket. With a 7+1+1 Power Phase and Dr.MOS for VCore+GT, it ensures efficient and stable power delivery to the CPU. The 14th Gen Motherboard supports DDR5 memory at speeds up to 7200MHz (OC), allowing for smooth multitasking and enhanced performance.

Availability:In stock

SKU:PCG-3100-CCDB

Categories: ASRock (Intel)

Fast Shipping

For all orders

1 & 1 Returns

Cancellation after 1 day

Secure Payment

Guarantee secure payments

Hotline Order:

Sat - Thu : 10AM - 08PM

+8801704444109

Description Reviews (0)

Basic Information
Supported CPU	Supports 14th, 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory
Type	DDR5
Slots	4
Supported Memory	Dual Channel DDR4 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory	192GB
Graphics
Graphics	Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1 x eDP 1x DisplayPort
USB (s)	2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x eDP Signal Connector 1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty	3 years
