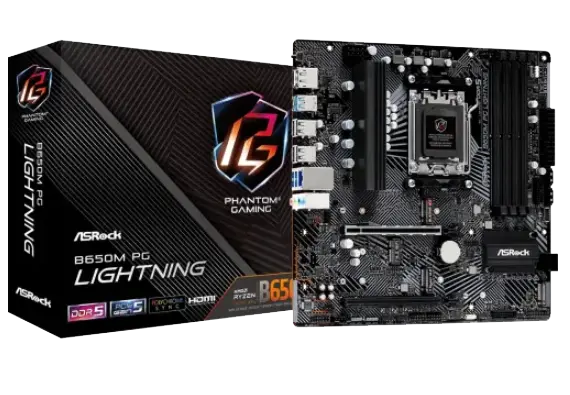

ASRock B650M PG Lightning AM5
The ASRock B650M PG Lightning is a powerful Micro ATX motherboard that supports the latest AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors. It features a robust 6+2+1 power phase design with Dr.MOS technology, ensuring reliable power delivery and efficient performance.
Fast Shipping
For all orders
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Sat - Thu : 10AM - 08PM
+8801704444109
| Expansion Slots | |
|---|---|
| Supported CPU | - Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory | |
| Type | DDR5 |
| Slots | 4x DIMMs |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Connector & Ports | |
| HDMI | 1 x HDMI Port |
| Display Port (s) | 1 x DisplayPort 1.4 |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| Others | |
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
